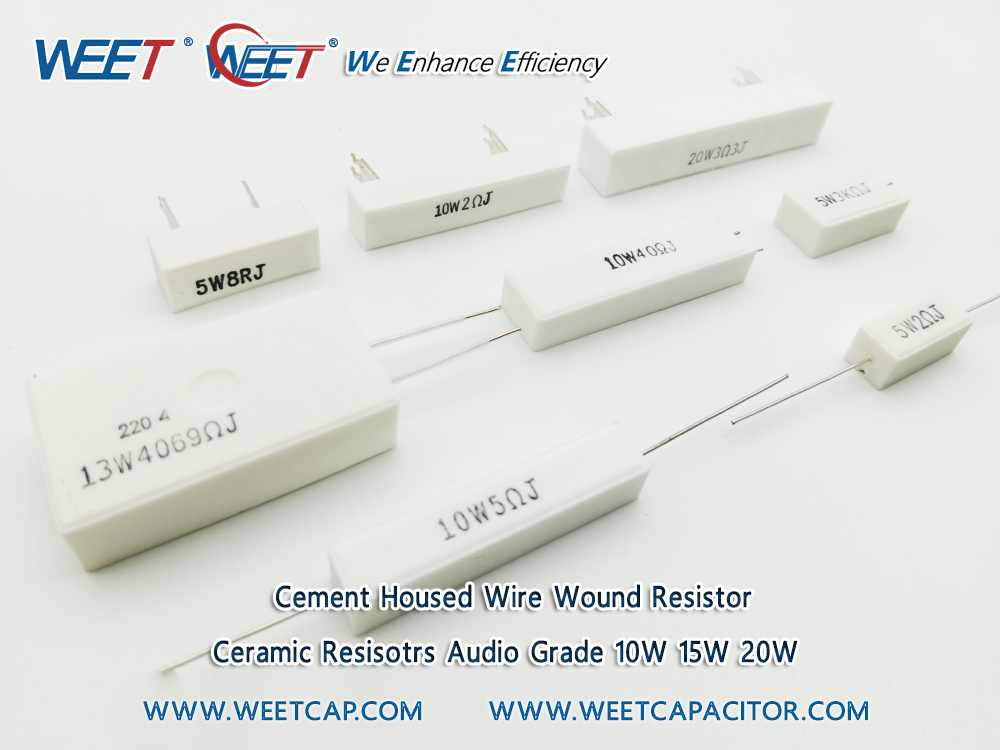

WEET Ceramic Core Resistors Audio Grade 5W 10W 15W 20W

Available in 5, 10 and 20 Watt versions

Affordable and reliable, competitive price

Standard Rsistance Tolerance: ±5%

Special Rsistance Tolerance: ±2%

Easy to apply on PCB crossovers

High temperature tolerance and resistant to humidity and shock

The ceramic resistors are an affordable resistor for budget to medium quality audio application and a proven stable of the OEM speaker manufacturing industry

 Completely insulated making them highly suitable for PCB crossover application

 In the high values the winding cores are replaced by high power handling film

 Instant overload capacity, low noise figure and low annual shift in resistance value

 Max overload voltage is 2 times of max. working voltage

 Power handling film means that decreasing the resistance values compared to models with wound resistance wire.

• Dimensions for 5 watt Ceramic: 23 mm/ 9.5 mm / 9 mm

• Dimensions for 10 watt Ceramic: 48 mm/ 9.5 mm / 9 mm

• Dimensions for 20 watt Ceramic: 60 mm/ 14 mm / 14 mm
